MAP Type System (v1.3)¶

ChangeLog¶

v1.3¶

clarifies that concrete HolonCollectionType makes persisted collections first-class holons that may be targeted by HolonReference
clarifies that this document records only the schema-level consequence of HolonCollectionType, while runtime representation guidance remains in runtime-shared-types.md

v1.2¶

clarifies the MAP meta-schema around the TypeDescriptor and MetaTypeDescriptor model
preserves MAP's single-inheritance rule: each type may extend at most one other type
gives explicit architectural priority to the distinction between DescribedBy and Extends
clarifies that the JSON type field is shorthand for the DescribedBy relationship
clarifies that diagram stereotypes such as <<MetaHolonType>> are shorthand for DescribedBy
clarifies that TypeDescriptor is self-describing and serves as the concrete bootstrap descriptor for descriptor holons
clarifies that MetaTypeDescriptor defines the shared descriptor obligations inherited across descriptor lineages
clarifies that concrete descriptors are single holons; MAP does not instantiate a second companion TypeDescriptor holon for each descriptor definition
clarifies that effective descriptor obligations arise from both:
descriptor-wide semantics propagated through DescribedBy -> TypeDescriptor
TypeKind-specific semantics inherited through Extends
clarifies that InstanceProperties and InstanceRelationships are interpreted differently depending on where they appear in the descriptor hierarchy
formalizes that Extends preserves descriptor structure while DescribedBy interprets populated instance-surface declarations from the effective describing type
clarifies that only concrete type descriptors describe ordinary runtime instances
clarifies that abstract type descriptors serve as inheritance anchors and relationship anchors

v1.1¶

distinguishes three major MAP type categories:
descriptors
runtime shared types
runtime envelopes
introduces runtime-shared-types.md as the canonical home for cross-surface runtime shared types
clarifies that BaseValue, rather than a separate Value layer, is the canonical scalar runtime shared type
clarifies that runtime envelopes remain documented in their owning surface directories

v1.0¶

established the baseline overview of MAP as a self-describing holonic type system

The MAP Type System provides a holonic, self-describing, and extensible foundation for representing knowledge in an agent-centric world. MAP types are represented as structured, versioned, queryable units of meaning. Holons are typed by descriptors, and descriptors are themselves represented in the MAP type graph.

This holonic approach means:

Types can describe runtime holons.
Types can inherit obligations from other types.
Types can be extended, queried, versioned, and governed as data.
Schemas can evolve without requiring every new domain type to be compiled into the core codebase.

The MAP Type System enables agents to:

define their own schemas and vocabularies
share and evolve types collaboratively
validate, introspect, and visualize holons at runtime
build interoperable semantic structures across HolonSpaces

This document introduces the architecture of the MAP Type System, structured around the v1.2 meta-schema model, TypeKinds, schemas, HolonSpaces, key rules, introspection semantics, and the relationship between schema descriptors and the runtime shared types reused across higher-level surfaces.

For the cross-cutting runtime architecture that carries these self-describing holons across persistence, shared runtime state, references, and typed core structs, see ../holon-layered-representation-design-spec.md.

For a concrete design-validation discipline that pressure-tests this model, see schema-v2-pressure-test-checklist.md.

1. Introduction: What Is the MAP Type System?¶

The MAP Type System is:

Self-describing: Holons are typed by descriptors, and descriptors are represented in the type graph.
Compositional: Holons can be connected through typed relationships to build meaningful semantic graphs.
Introspectable: Any holon can answer:
What kind of holon am I?
What properties do I have?
What relationships do I participate in?
Extensible: Agents can define new types without altering the core codebase.
Governable: Types belong to schemas, and schemas are stewarded within HolonSpaces.

MAP's Ontology-as-Data Meta-Modeling Approach¶

The Memetic Activation Platform (MAP) models its ontology as data: not as code, not as syntax-bound models, but as a declarative, introspectable system of holons and relationships.

Every type, property, relationship, and rule in the MAP ecosystem is represented as structured data. This creates a self-describing semantic graph in which schemas can be queried, validated, transformed, and evolved using the same mechanisms used for ordinary MAP data.

What It Is¶

Ontology-as-data: Type system elements such as Book.HolonType, Description.PropertyType, MetaHolonType, and MapStringValueType are modeled as structured data.
Declarative architecture: Relationships, constraints, inheritance, and key rules are declared explicitly rather than implied by code or syntax.
Syntax-independent: The MAP type system is not coupled to OWL, LinkML, JSON Schema, Ecore, or any other concrete modeling syntax.
Portable and generative: Because the ontology is represented as data, it can be transformed into other modeling formats, schemas, documentation, forms, validators, or APIs.

Why This Matters¶

Interoperability: MAP avoids vendor lock-in and can interoperate across tooling ecosystems.
Transparency and introspection: Every visible type system element can be queried, inspected, and reasoned about.
Extensibility: New domain schemas can be introduced declaratively.
Automation: The data-native model supports generation of schemas, forms, validators, visualizers, and adapters.
Evolvability: The underlying semantics can remain stable while external representations evolve.

A Foundation for Federated Semantics¶

This architecture positions MAP as a semantic engine for decentralized systems, federated knowledge graphs, and commons-oriented technology. Semantic clarity, flexibility, and sovereignty are preserved because schemas are represented as data and stewarded within HolonSpaces.

2. Organizing the MAP Type System¶

At the heart of MAP is a self-describing type system built from data. The foundational building blocks of this system are type descriptors: holons that define the structure, semantics, and constraints of MAP types.

A relatively small number of descriptor types are built into MAP. These provide the foundation from which an open-ended set of domain types can be derived.

Type descriptors are grouped into schemas, which are cohesive collections of related type definitions. Each schema defines its own conceptual namespace and boundary of meaning. Every schema is stewarded within a single HolonSpace, anchoring it in a governance and trust context. A schema belongs to exactly one HolonSpace, but it may be referenced by types or instances across other spaces.

This layered organization follows a clear pattern:

Type descriptors define types.
Schemas group type descriptors.
HolonSpaces steward schemas.

This structure allows types to evolve in well-bounded contexts while participating in broader federated semantics.

Three Practical Type Categories¶

In current MAP architecture, it is useful to distinguish three major practical categories of types:

Descriptors
schema-defining and meaning-defining types such as HolonType, PropertyType, RelationshipType, and ValueType
Runtime Shared Types
the small set of cross-surface runtime-carried types reused inside commands, dances, queries, and related pathways
Runtime Envelopes
surface-owned containers such as command, dance, query, and trust-channel request and result wrappers

This document focuses primarily on the descriptor side of the type system. The authoritative definitions are maintained in the host/import_files/map-schema folder within the map-holons repo.

The canonical definitions for MAP runtime shared types live in runtime-shared-types.md.

The cross-layer architectural frame that connects descriptor-backed self-description to integrity, shared-object, reference, and typed core struct representations lives in ../holon-layered-representation-design-spec.md.

Runtime envelopes remain documented in their owning surface directories rather than here.

3. TypeKind: A Semantic Organizing Principle¶

Every MAP type descriptor declares a TypeKind. A TypeKind identifies what kind of type is being described.

TypeKind serves two roles:

Organizational: It groups descriptors that share structural expectations and validation behavior.
Semantic: It identifies the ontological kind of thing being defined in the MAP worldview.

Examples:

Holon identifies descriptors that classify data-bearing holons.
Property identifies descriptors that define scalar properties.
Relationship identifies descriptors that define typed links between holons.
Value(String) identifies descriptors for string-like scalar values.
EnumVariant identifies descriptors for enum variants.

TypeKind is not itself the inheritance mechanism. Structural obligations are carried through the descriptor hierarchy using DescribedBy and Extends.

Complete List of TypeKinds¶

The current set of supported TypeKinds is listed below. This set will evolve as MAP matures. Adding a new TypeKind requires a MAP release. Adding new type descriptors within an existing TypeKind does not.

TypeKind	Group	Description
`Holon`	Structural	Describes a type that classifies data-bearing holons
`Property`	Structural	Describes a scalar property of a holon
`Relationship`	Structural	Describes a directed link between holons
`EnumVariant`	Structural	Describes a variant in a defined enum
`Collection`	Structural	Describes a named group or set of holons
`Dance`	Behavioral	Describes an interactive protocol or workflow
`Value(String)`	Scalar Value	A scalar value based on a string
`Value(Integer)`	Scalar Value	A scalar value based on an integer
`Value(Boolean)`	Scalar Value	A scalar value based on a boolean
`Value(Enum)`	Scalar Value	A scalar value selected from a known enumeration
`Value(Bytes)`	Scalar Value	A binary value serialized as base64
`ValueArray(String)`	Scalar Array	An array of strings
`ValueArray(Integer)`	Scalar Array	An array of integers
`ValueArray(Boolean)`	Scalar Array	An array of booleans
`ValueArray(Enum)`	Scalar Array	An array of enum values
`ValueArray(Bytes)`	Scalar Array	An array of binary values

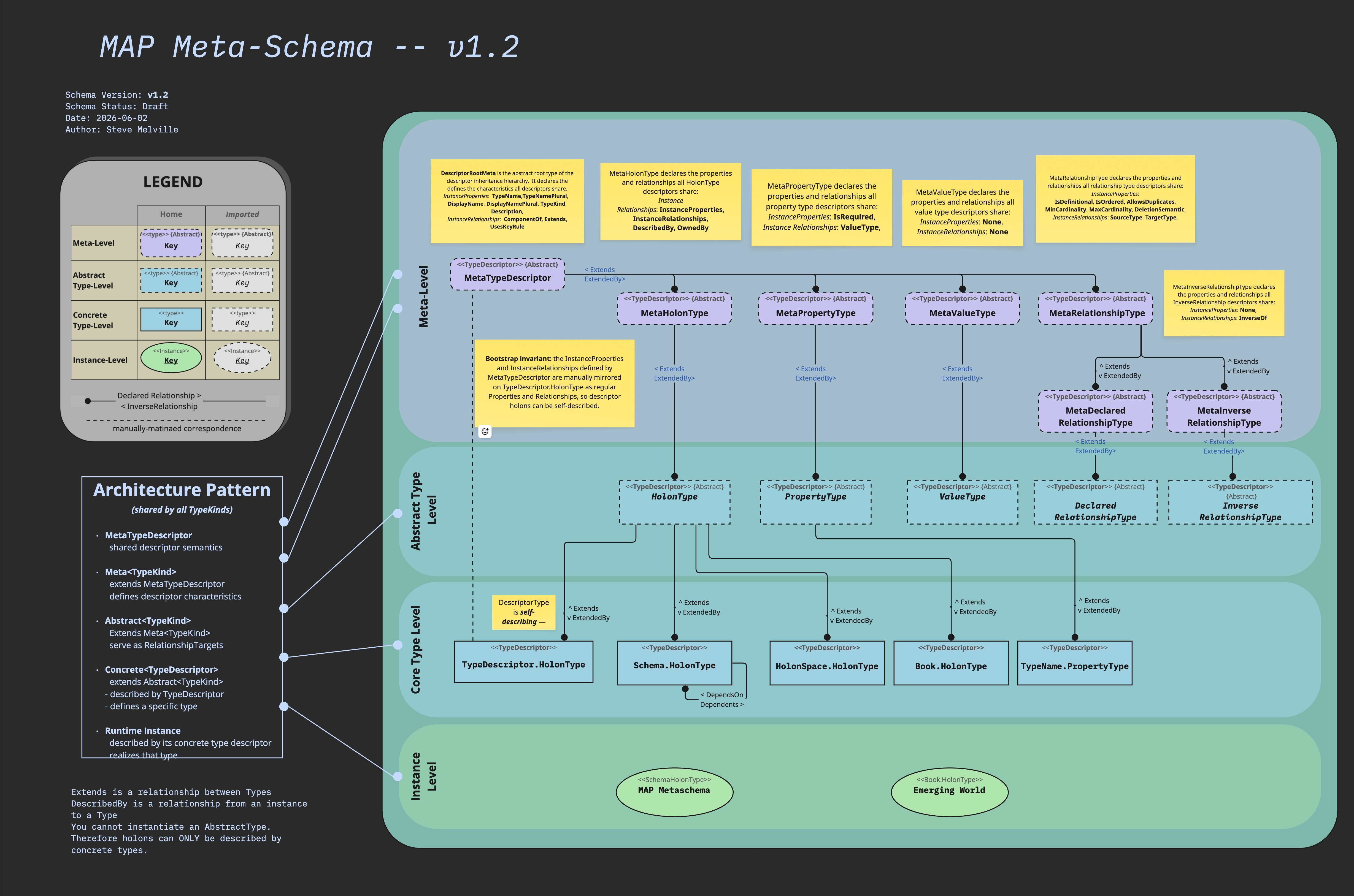

4. MAP Meta-Schema v1.2 Model¶

MAP v1.2 organizes descriptor semantics using four principal levels:

Meta-Level
Abstract Type Level
Core Type Level
Instance Level

MAP Schema Diagrams - 4-Level MAP Meta-Schema-v1.2.jpg

Architectural Summary¶

MetaTypeDescriptor is the abstract root of the descriptor inheritance hierarchy.
TypeKind-specific meta-types extend MetaTypeDescriptor.
Abstract type descriptors extend the meta-type appropriate to their TypeKind.
Concrete type descriptors extend the abstract type descriptor appropriate to their TypeKind.
Runtime instances are described by concrete type descriptors.
TypeDescriptor is self-describing and serves as the concrete bootstrap descriptor for descriptor holons.
Inheritance is single, additive, and monotonic.

The Three Independent Axes¶

The MAP type system depends on keeping three axes distinct.

`DescribedBy`¶

DescribedBy answers:

What descriptor defines this holon?
What is this holon's immediate type?

It is a relationship from an instance to its descriptor.

When MAP evaluates Instance DescribedBy Type, it evaluates the effective definition of Type after flattening the full Extends hierarchy of that type.

Examples:

MAP Metaschema is DescribedBy Schema.HolonType
Schema.HolonType is DescribedBy TypeDescriptor
TypeName.PropertyType is DescribedBy TypeDescriptor

`Extends`¶

Extends answers:

What more general type does this descriptor inherit from?
What obligations does it add to?

It is a relationship between types.

Extends is transitive, additive, monotonic, and structure-preserving. No transformation occurs across Extends: if a parent type declares an InstanceProperties or InstanceRelationships relationship, the child inherits that same relationship as a relationship on the child type.

Examples:

Schema.HolonType extends HolonType
TypeName.PropertyType extends PropertyType
HolonType extends MetaHolonType
MetaHolonType extends MetaTypeDescriptor

`Instances`¶

Instances are the actual holons that instantiate a type. They have a DescribedBy relationship to their type descriptor. The properties and relationships they may populate are determined by the effective InstanceProperties and InstanceRelationships of their describing type after Extends flattening.

Instances is the inverse of the DescribedBy relationship. Examples:

Schema.HolonType has instances such as MAP Metaschema
TypeDescriptor has instances such as Schema.HolonType, Book.HolonType, and TypeName.PropertyType

Why the Distinction Matters¶

This distinction is the central architectural key to the v1.2 model.

A descriptor holon such as TypeName.PropertyType is a single holon. MAP does not create a second companion holon to hold its descriptor-wide metadata.

Instead:

TypeName.PropertyType stores its own authored properties such as type_name, display_name, and description
TypeName.PropertyType is DescribedBy TypeDescriptor
TypeName.PropertyType extends PropertyType

This means:

descriptor-wide semantics come from the DescribedBy -> TypeDescriptor axis
TypeKind-specific semantics come from the Extends -> PropertyType axis

These axes must never be conflated.

If DescribedBy and Extends are confused, the model collapses into false multiple inheritance or into the mistaken idea that each descriptor is composed from multiple instantiated companion holons.

Diagram and JSON Shorthand¶

In diagrams, stereotype notation such as <<MetaHolonType>> is shorthand for DescribedBy.

In JSON import files, the type field is shorthand for DescribedBy.

For example:

{
  "key": "Schema.HolonType",
  "type": "#TypeDescriptor",
  "properties": {
    "type_name": "Schema",
    "type_kind": "Holon",
    "is_abstract_type": false
  },
  "relationships": [
    {
      "name": "Extends",
      "target": { "$ref": "#HolonType" }
    }
  ]
}

This means:

Schema.HolonType is DescribedBy TypeDescriptor
Schema.HolonType extends HolonType
Schema.HolonType is a concrete holon type descriptor
runtime schema holons may be DescribedBy Schema.HolonType

5. MetaTypeDescriptor¶

MetaTypeDescriptor is the unique abstract root of the descriptor inheritance hierarchy.

It defines the characteristics all descriptors share. These include descriptor-wide semantics such as:

TypeName
TypeNamePlural
DisplayName
DisplayNamePlural
Description
TypeKind
ComponentOf
UsesKeyRule
Extends

It also defines the abstract descriptor-wide interpretation of:

InstanceProperties
InstanceRelationships

At this level, these do not yet mean ordinary runtime instance surface. Instead, they define the descriptor obligations that descriptor holons inherit as part of the bootstrap model.

Bootstrap Role¶

MetaTypeDescriptor exists to make the descriptor world legible to itself.

It is abstract, but it allows the system to state that descriptor holons have shared obligations before any specific TypeKind branch is considered.

TypeDescriptor then serves as the concrete self-describing bootstrap descriptor holon that realizes those semantics for descriptor holons.

Special Bootstrap Note¶

Because TypeDescriptor is self-describing, the bootstrap relationship between MetaTypeDescriptor, TypeDescriptor, and descriptor holons requires careful interpretation:

MetaTypeDescriptor defines the abstract root semantics all descriptors inherit
TypeDescriptor is a concrete descriptor holon in the graph
descriptor holons are DescribedBy TypeDescriptor
descriptor holons may therefore be self-describing without requiring a second companion descriptor holon per definition

The crucial propagation rule is that DescribedBy does not copy descriptor relationship types onto the described holon. Instead, it interprets populated InstanceProperties and InstanceRelationships declared on the effective describing type and exposes only their targets as the described holon's ordinary instance surface.

6. Meta-Types¶

Meta-types define the obligations for descriptors of a given TypeKind.

Top-level meta-types extend MetaTypeDescriptor:

MetaHolonType
MetaPropertyType
MetaValueType
MetaRelationshipType

Sub-meta-types may extend other meta-types. For example:

MetaDeclaredRelationshipType extends MetaRelationshipType
MetaInverseRelationshipType extends MetaRelationshipType

MetaHolonType¶

MetaHolonType defines the obligations of holon type descriptors.

It declares the semantics shared by HolonType descriptors, including:

InstanceProperties
InstanceRelationships
DescribedBy
OwnedBy

Concrete examples that ultimately inherit through this branch include:

Schema.HolonType
HolonSpace.HolonType
Book.HolonType
Person.HolonType

MetaPropertyType¶

MetaPropertyType defines the obligations of property type descriptors.

It declares that property type descriptors specify:

IsRequired
ValueType

Concrete examples include:

Description.PropertyType
DisplayName.PropertyType
TypeName.PropertyType

MetaValueType¶

MetaValueType defines the obligations of value type descriptors.

Value types describe scalar or scalar-array value semantics. They do not declare ordinary instance properties or instance relationships because values are not holons and do not participate in relationships as holons.

Concrete examples include:

MapStringValueType
MapIntegerValueType
MapBooleanValueType
MapBytesValueType
MapEnumValueType

MetaRelationshipType¶

MetaRelationshipType defines the obligations of relationship type descriptors.

Relationship type descriptors may specify:

SourceType
TargetType
MinCardinality
MaxCardinality
DeletionSemantic
IsDefinitional
AllowsDuplicates
IsOrdered

Sub-meta-types specialize this pattern for declared and inverse relationship types.

MetaInverseRelationshipType¶

MetaInverseRelationshipType additionally defines:

InverseOf

7. Abstract Type Descriptors¶

Abstract type descriptors extend the meta-type appropriate to their TypeKind and anchor inheritance hierarchies for their TypeKind.

Examples:

Abstract Type Descriptor	Extends
`HolonType`	`MetaHolonType`
`PropertyType`	`MetaPropertyType`
`ValueType`	`MetaValueType`
`DeclaredRelationshipType`	`MetaDeclaredRelationshipType`
`InverseRelationshipType`	`MetaInverseRelationshipType`

Abstract type descriptors are not instantiable. No ordinary runtime holon may be directly DescribedBy an abstract type descriptor.

Their purpose is to:

define reusable TypeKind-specific semantics
serve as inheritance anchors for concrete type descriptors
provide stable source and target anchors for core relationship types
allow validation to be expressed against abstract categories while runtime instances use concrete descriptors

Examples:

Schema.HolonType extends HolonType
Description.PropertyType extends PropertyType
MapStringValueType extends ValueType
ComponentOf.RelationshipType extends DeclaredRelationshipType

8. TypeDescriptor¶

TypeDescriptor is the concrete bootstrap descriptor for descriptor holons.

It is self-describing.

This means:

TypeDescriptor is itself a holon in the graph
TypeDescriptor is DescribedBy TypeDescriptor
TypeDescriptor extends HolonType

TypeDescriptor therefore sits at a special boundary in the architecture:

it is concrete because it is an actual holon in the graph
it is bootstrap because it is the descriptor used by descriptor holons
it is root-like because descriptor holons depend on it for their immediate descriptive identity

What TypeDescriptor Does¶

TypeDescriptor does not exist as a separate companion holon for each descriptor definition.

For example, when MAP loads TypeName.PropertyType, it does not instantiate both:

TypeName.PropertyType
a separate per-definition TypeDescriptor

Instead, MAP instantiates one descriptor holon:

TypeName.PropertyType

That holon:

stores its own authored fields such as type_name = "TypeName"
is DescribedBy the shared TypeDescriptor
extends PropertyType

So TypeDescriptor is not a per-descriptor payload container. It is the concrete bootstrap descriptor that makes descriptor holons legible as descriptors.

Effective Semantics of Descriptor Holons¶

For a descriptor holon such as TypeName.PropertyType, the effective obligations are the combination of:

authored properties and relationships on TypeName.PropertyType
descriptor-wide semantics propagated from TypeDescriptor
inherited TypeKind-specific semantics from the PropertyType lineage

More precisely:

Extends carries descriptor structure forward unchanged
DescribedBy consumes populated InstanceProperties and InstanceRelationships from the effective describing type
only the populated targets of those relationships become ordinary properties and relationships available on the described holon
the relationship types InstanceProperties and InstanceRelationships do not themselves propagate onto the described holon

This is the key interpretive rule of the v1.2 design.

9. Concrete Type Descriptors¶

Concrete type descriptors define actual MAP types.

Each concrete type descriptor:

is DescribedBy TypeDescriptor
extends the abstract type descriptor appropriate to its TypeKind
fulfills inherited descriptor obligations
may describe runtime instances
participates in schemas
may be keyed or keyless depending on its key rule

Examples:

Concrete Type Descriptor	Described By	Extends
`TypeDescriptor`	`TypeDescriptor`	`HolonType`
`Schema.HolonType`	`TypeDescriptor`	`HolonType`
`HolonSpace.HolonType`	`TypeDescriptor`	`HolonType`
`Description.PropertyType`	`TypeDescriptor`	`PropertyType`
`MapStringValueType`	`TypeDescriptor`	`ValueType`
`ComponentOf.RelationshipType`	`TypeDescriptor`	`DeclaredRelationshipType`

A concrete type descriptor may itself be represented as a holon while also defining a type for other holons. These are separate axes.

For example, Schema.HolonType is:

described by TypeDescriptor, because it is a descriptor holon
extended from HolonType, because it is a concrete specialization of the abstract holon type root
used to describe schema holon instances, such as MAP Metaschema

This is not multiple inheritance. It is one DescribedBy relationship plus one Extends relationship.

10. Runtime Instances¶

Runtime instances are the ordinary holons that populate MAP HolonSpaces.

They:

are described by concrete type descriptors
include values for properties specified by their type
participate in relationships specified by their type
may be keyed or keyless depending on the UsesKeyRule of their type descriptor

Examples:

MAP Metaschema is described by Schema.HolonType
a specific HolonSpace is described by HolonSpace.HolonType
a book holon may be described by Book.HolonType
a person holon may be described by Person.HolonType

Runtime instances are never described by abstract type descriptors.

11. Compositional Inheritance via Extends¶

MAP uses Extends as its inheritance mechanism.

Extends means that a type inherits the obligations of a more general type. These obligations may include:

required properties
allowed properties
required relationships
allowed relationships
validations
key rule expectations
semantic commitments

MAP supports only single inheritance:

a type may extend at most one other type

MAP inheritance is strictly additive and monotonic:

a subtype may add obligations
a subtype may refine by adding constraints
a subtype may not remove inherited obligations
a subtype may not weaken inherited obligations

This keeps type evolution predictable and validation tractable.

Examples¶

MetaPropertyType extends MetaTypeDescriptor.

This means MetaPropertyType inherits the descriptor obligations shared by all TypeKinds and adds obligations specific to property type descriptors.

Description.PropertyType extends PropertyType.

This means Description.PropertyType inherits the general obligations of property type descriptors and specializes them for the description property.

Schema.HolonType extends HolonType.

This means Schema.HolonType inherits the general obligations of holon type descriptors and specializes them for schema holons.

Extends Is Not DescribedBy¶

This must remain explicit:

DescribedBy identifies what descriptor directly types a holon
Extends identifies what more general type a type inherits from

Schema.HolonType does not extend TypeDescriptor.

It is DescribedBy TypeDescriptor.

It extends HolonType.

This distinction is foundational for reading every MAP schema correctly.

Formal Semantics of `Extends`¶

Extends is a relationship between types.

If:

ChildType Extends ParentType

then ChildType inherits the properties and relationships declared on ParentType.

Inheritance through Extends is:

transitive
additive
monotonic
structure-preserving

No transformation occurs across Extends.

If ParentType declares:

InstanceRelationships -> R

then ChildType inherits:

InstanceRelationships -> R

as an InstanceRelationships relationship on the child type.

The same rule holds for InstanceProperties.

Formal Semantics of `DescribedBy`¶

DescribedBy is a relationship from an instance to a concrete type.

If:

Instance DescribedBy Type

then MAP evaluates the effective definition of Type.

The effective definition of Type is computed by flattening its full Extends hierarchy.

DescribedBy does not perform inheritance.

Instead, it interprets populated InstanceProperties and InstanceRelationships on the effective describing type.

Only the targets of populated InstanceProperties and InstanceRelationships propagate.

The InstanceProperties and InstanceRelationships relationship types themselves do not propagate.

Propagation of `InstanceProperties`¶

If the effective describing type has:

InstanceProperties -> P

where P is a PropertyType, then an instance described by that type may or must populate property P.

This does not mean the instance receives an InstanceProperties relationship to P.

It means P becomes part of the ordinary property surface the instance may populate.

Propagation of `InstanceRelationships`¶

If the effective describing type has:

InstanceRelationships -> R

where R is a DeclaredRelationshipType, then an instance described by that type may or must participate in relationship R.

This does not mean the instance receives an InstanceRelationships relationship to R.

It means R becomes part of the ordinary relationship surface the instance may populate.

Descriptor-Level Constraint Relationships Do Not Propagate¶

Relationships such as:

InstanceProperties -> PropertyType

and:

InstanceRelationships -> DeclaredRelationshipType

define what a type may declare.

They do not themselves propagate to instances.

Only populated targets propagate across DescribedBy.

Example: Ordinary Runtime Holon¶

If:

Book.HolonType InstanceProperties -> Title.PropertyType

and:

Book.HolonType InstanceRelationships -> AuthorOf.RelationshipType

then:

Emerging World DescribedBy Book.HolonType

may populate property Title and may participate in relationship AuthorOf.

But Emerging World does not receive InstanceProperties or InstanceRelationships as relationships.

Example: Descriptor Holon¶

If:

TypeDescriptor InstanceProperties -> TypeName.PropertyType

and:

TypeDescriptor InstanceRelationships -> Extends.RelationshipType

then:

TypeName.PropertyType DescribedBy TypeDescriptor

may populate property type_name and may participate in relationship Extends.

But TypeName.PropertyType does not receive InstanceProperties or InstanceRelationships as relationships.

TypeDescriptor Bootstrap Invariant¶

TypeDescriptor is the concrete bootstrap type used as the DescribedBy target for descriptor holons.

It manually declares an instance surface corresponding to the shared descriptor surface defined by MetaTypeDescriptor.

This correspondence is a manually maintained bootstrap invariant:

MetaTypeDescriptor declares the abstract descriptor surface through InstanceProperties and InstanceRelationships
TypeDescriptor declares the corresponding ordinary property and relationship surface that descriptor holons expose after DescribedBy interpretation

12. Abstract Types as Relationship Anchors¶

In MAP, relationship type descriptors declare SourceType and TargetType. These define which kinds of holons a relationship may connect.

To support reusable relationships across schemas and domains, MAP anchors many core relationship types to abstract type descriptors.

Examples:

ValueType has source PropertyType and target ValueType
InstanceProperties has source HolonType and target PropertyType
InstanceRelationships has source HolonType and target DeclaredRelationshipType
SourceType has source RelationshipType and target HolonType
TargetType has source RelationshipType and target HolonType

Although abstract type descriptors are not instantiable, they are valid reference anchors in the type graph.

Validation Behavior¶

When validating a relationship instance:

Let R be the relationship type descriptor.
Let S be the source holon.
Let T be the target holon.
Let R.SourceType be the expected source type.
Let R.TargetType be the expected target type.

The relationship instance is valid if:

S.DescribedBy is equal to or extends R.SourceType
T.DescribedBy is equal to or extends R.TargetType

This allows relationship types to be declared once against abstract anchors while remaining applicable to all concrete descriptors that extend those anchors.

13. Design Principles Recap¶

The MAP type system distinguishes three axes: description using DescribedBy, inheritance using Extends, and instantiation using Instances.
In diagrams, <<TypeName>> is shorthand for DescribedBy. In JSON, type is shorthand for DescribedBy.
Every ordinary holon must be directly DescribedBy exactly one concrete type descriptor.
MetaTypeDescriptor is the unique abstract root of the descriptor inheritance hierarchy.
MetaTypeDescriptor declares the shared descriptor semantics inherited by all descriptor branches.
The top-level meta-types extend MetaTypeDescriptor: MetaHolonType, MetaPropertyType, MetaValueType, and MetaRelationshipType.
Meta-types define TypeKind-specific descriptor obligations.
MetaHolonType defines the obligations of holon type descriptors, including InstanceProperties and InstanceRelationships.
MetaPropertyType defines the obligations of property type descriptors, including ValueType and IsRequired.
MetaValueType defines the obligations of value type descriptors. Value types do not declare ordinary instance properties or instance relationships.
MetaRelationshipType defines the obligations of relationship type descriptors, including source type, target type, cardinality, deletion semantics, and inverse relationships.
Meta-types may have sub-meta-types that extend them, such as MetaDeclaredRelationshipType and MetaInverseRelationshipType extending MetaRelationshipType.
Each abstract type descriptor extends the meta-type appropriate to its TypeKind.
Abstract type descriptors are not instantiable and serve as inheritance anchors for concrete type descriptors.
Concrete type descriptors are DescribedBy TypeDescriptor and extend the abstract type appropriate to their TypeKind.
TypeDescriptor is self-describing and serves as the concrete bootstrap descriptor for descriptor holons.
A descriptor holon is a single holon. MAP does not instantiate a second companion TypeDescriptor holon for each descriptor definition.
The effective semantics of a concrete descriptor arise from:
descriptor-wide semantics interpreted through DescribedBy -> TypeDescriptor
TypeKind-specific obligations inherited through Extends
authored properties and relationships on the concrete descriptor itself
A MAP type may extend at most one other type. MAP supports single inheritance only.
Inheritance is strictly additive and monotonic. A subtype may add obligations but may not remove or weaken inherited obligations.
Only concrete type descriptors describe ordinary runtime instances.
Abstract type descriptors are valid relationship anchors even though they are not directly instantiable.
DescribedBy and Extends must never be conflated. The first answers what directly types a holon. The second answers what a type inherits from.
Extends preserves descriptor structure. If a parent type declares InstanceProperties or InstanceRelationships, a child type inherits those same relationships unchanged.
DescribedBy interprets descriptor structure. It consumes populated InstanceProperties and InstanceRelationships from the effective describing type and exposes only their targets as the described holon's ordinary property and relationship surface.
The relationship types InstanceProperties and InstanceRelationships do not themselves propagate onto described instances.
TypeDescriptor is a bootstrap special case whose ordinary property and relationship surface must correspond to the abstract descriptor surface defined by MetaTypeDescriptor.

14. Key Rules, Keyed Types, and Keyless Types¶

MAP supports both keyed and keyless holon types.

A keyed type defines instances that have stable semantic identity within a HolonSpace. These instances can be referenced by key in import files and relationship targets.

A keyless type defines instances whose identity is contextual. Keyless holons are typically embedded and are not independently referenced.

Key behavior is specified through UsesKeyRule.

Examples:

TypeName.KeyRule derives a key from a type name.
TypeKind.KeyRule may derive a key from type name and TypeKind.
Relationship.KeyRuleType derives keys for relationship descriptors from source type, relationship name, and target type.
None.KeyRuleType marks a type as keyless.

The key rule system is part of the descriptor model because key derivation is a semantic obligation of a type.

15. Base Types and Base Values¶

Several TypeKinds, such as Value(String), Value(Boolean), or ValueArray(Enum), correspond to scalar value types. These are backed by a fixed set of Base Types that define how values are represented, stored, and validated across environments.

Base Types¶

Base Types are the foundational portable value types in MAP. A Base Type determines how a value is represented across programming environments such as Rust, TypeScript, and JSON.

The set of Base Types is fixed for a given MAP version. Adding or changing Base Types requires a MAP release because Base Types affect runtime representation and persistence.

Principle: Preserve Type Identity Across Platforms¶

The Base Type name should be treated as a portable name, used consistently across environments and interpretable by the MAP type system.

In Rust, type identity is preserved through newtypes such as:

pub struct MapString(pub String);

In TypeScript and JSON, similar identity can be preserved through type aliases, tagging, or enforced schema constraints.

Current Base Types with Portable Name Bindings¶

Base Type	Rust Binding	TypeScript Binding	JSON Binding
`MapString`	`pub struct MapString(pub String)`	`export type MapString = string;`	`{ "type": "MapString", "value": "..." }`
`MapBoolean`	`pub struct MapBoolean(pub bool)`	`export type MapBoolean = boolean;`	`{ "type": "MapBoolean", "value": true }`
`MapInteger`	`pub struct MapInteger(pub i64)`	`export type MapInteger = number;`	`{ "type": "MapInteger", "value": 42 }`
`MapEnumValue`	`pub struct MapEnumValue(pub String)`	`export type MapEnumValue = string;`	`{ "type": "MapEnumValue", "value": "DRAFT" }`
`MapBytes`	`pub struct MapBytes(pub Vec<u8>)`	`export type MapBytes = string; // base64`	`{ "type": "MapBytes", "value": "aGVsbG8=" }`

BaseValue¶

MAP represents scalar runtime values using the BaseValue enum.

pub enum BaseValue {
    StringValue(MapString),
    BooleanValue(MapBoolean),
    IntegerValue(MapInteger),
    EnumValue(MapEnumValue),
    BytesValue(MapBytes),
}

Each variant corresponds to a specific MAP Base Type. This allows property values to be stored and inspected uniformly while preserving type identity.

Only BaseValue variants may be used as PropertyValues within a holon's PropertyMap:

pub type PropertyValue = BaseValue;
pub type PropertyMap = BTreeMap<PropertyName, Option<PropertyValue>>;

By wrapping all scalar values in a unified enum, MAP ensures that holon properties are portable, self-describing, and serializable across environments.

Notes¶

Rust bindings use the newtype pattern, such as pub struct MapString(pub String), to distinguish each base type while still leveraging native Rust primitives.
Base types can support custom trait implementations, typed serialization, deterministic hashing, and compile-time safety.
BaseValue acts as the unified runtime representation of scalar values.
BaseValue includes deterministic binary encoding support, display support, and conversion behavior.
TypeScript bindings are currently simple aliases for interoperability with JSON and browser-based UIs.
JSON bindings assume a tagged format for clarity and round-tripping.
ValueType descriptors define the semantic value constraints that property descriptors reference.
The previously defined BaseType enum has been removed. Its former responsibilities are handled by:
TypeKind for descriptor classification
ValueType descriptors for scalar semantics
BaseValue for runtime scalar representation

16. HolonCollection as a First-Class Holon Type¶

The introduction of a concrete HolonCollectionType means a persisted collection is no longer only a runtime convenience shape. It is a schema-recognized holon type.

This has an important consequence:

a HolonReference may refer to a HolonCollection holon in the same way it may refer to any other persisted holon

This matters most at the schema boundary:

a collection may now have first-class persisted identity
collection holons may participate in ordinary reference resolution
schema-defined collection semantics can be authored on the collection descriptor itself

Questions about runtime representation, read-side accessors, or deferred write-side collection APIs belong to runtime-shared-types.md rather than this document.

17. Summary¶

The MAP Type System v1.2 separates description, inheritance, and instantiation into distinct axes.

The v1.2 meta-schema model is organized around:

MetaTypeDescriptor as the abstract root of descriptor inheritance
TypeKind-specific meta-types
abstract type descriptors that anchor inheritance
TypeDescriptor as the concrete self-describing bootstrap descriptor
concrete type descriptors that define usable MAP types
runtime instances described by those concrete type descriptors

This preserves MAP's self-describing, holonic architecture while making explicit the central distinction that keeps the model coherent:

DescribedBy says what directly types a holon
Extends says what a type inherits from

More precisely:

Extends preserves structure
DescribedBy interprets structure
Extends carries InstanceProperties and InstanceRelationships forward as relationships between types
DescribedBy consumes populated InstanceProperties and InstanceRelationships and exposes their targets as ordinary properties and relationships on the described instance

The result is a type system that is:

introspectable
extensible
schema-governed
TypeKind-aware
single-inheritance
monotonic
suitable for open-ended, agent-defined semantics

MAP Type System (v1.3)¶

ChangeLog¶

v1.3¶

v1.2¶

v1.1¶

v1.0¶

1. Introduction: What Is the MAP Type System?¶

MAP's Ontology-as-Data Meta-Modeling Approach¶

What It Is¶

Why This Matters¶

A Foundation for Federated Semantics¶

2. Organizing the MAP Type System¶

Three Practical Type Categories¶

3. TypeKind: A Semantic Organizing Principle¶

Complete List of TypeKinds¶

4. MAP Meta-Schema v1.2 Model¶

Architectural Summary¶

The Three Independent Axes¶

DescribedBy¶

Extends¶

Instances¶

Why the Distinction Matters¶

Diagram and JSON Shorthand¶

5. MetaTypeDescriptor¶

Bootstrap Role¶

Special Bootstrap Note¶

6. Meta-Types¶

MetaHolonType¶

MetaPropertyType¶

MetaValueType¶

MetaRelationshipType¶

MetaInverseRelationshipType¶

7. Abstract Type Descriptors¶

8. TypeDescriptor¶

What TypeDescriptor Does¶

Effective Semantics of Descriptor Holons¶

9. Concrete Type Descriptors¶

10. Runtime Instances¶

11. Compositional Inheritance via Extends¶

Examples¶

Extends Is Not DescribedBy¶

Formal Semantics of Extends¶

Formal Semantics of DescribedBy¶

Propagation of InstanceProperties¶

Propagation of InstanceRelationships¶

Descriptor-Level Constraint Relationships Do Not Propagate¶

Example: Ordinary Runtime Holon¶

Example: Descriptor Holon¶

TypeDescriptor Bootstrap Invariant¶

12. Abstract Types as Relationship Anchors¶

Validation Behavior¶

13. Design Principles Recap¶

14. Key Rules, Keyed Types, and Keyless Types¶

15. Base Types and Base Values¶

Base Types¶

Principle: Preserve Type Identity Across Platforms¶

Current Base Types with Portable Name Bindings¶

BaseValue¶

Notes¶

16. HolonCollection as a First-Class Holon Type¶

17. Summary¶

`DescribedBy`¶

`Extends`¶

`Instances`¶

Formal Semantics of `Extends`¶

Formal Semantics of `DescribedBy`¶

Propagation of `InstanceProperties`¶

Propagation of `InstanceRelationships`¶
