MAP Commands Specification (v1.0.0)¶

1. Purpose and Design Intent¶

This specification defines the canonical IPC command architecture for the Memetic Activation Platform (MAP). MAP Commands define the IPC contract between the TypeScript client (Experience Layer) and the Conductora host runtime (Rust Integration Hub). They provide a strongly typed interface through which the client invokes MAP domain operations inside the IntegrationHub runtime. All stateful execution occurs inside the Integration Hub. The Experience Layer performs no domain mutation and holds no holon state.

MAP Commands are NOT intended to serve as a universal protocol for all MAP communication channels. Other subsystems (such as Trust Channels, host–guest bridges, or storage replay mechanisms) may use different transport formats and adapters.

This specification formalizes the MAP IPC command architecture, including:

A single structural dispatch boundary
An explicit scope model
A strict wire/domain separation ("sandwich model")
Descriptor-driven execution policy
Deterministic lifecycle enforcement

This document is normative for the MAP IPC layer.

2. Architectural Context¶

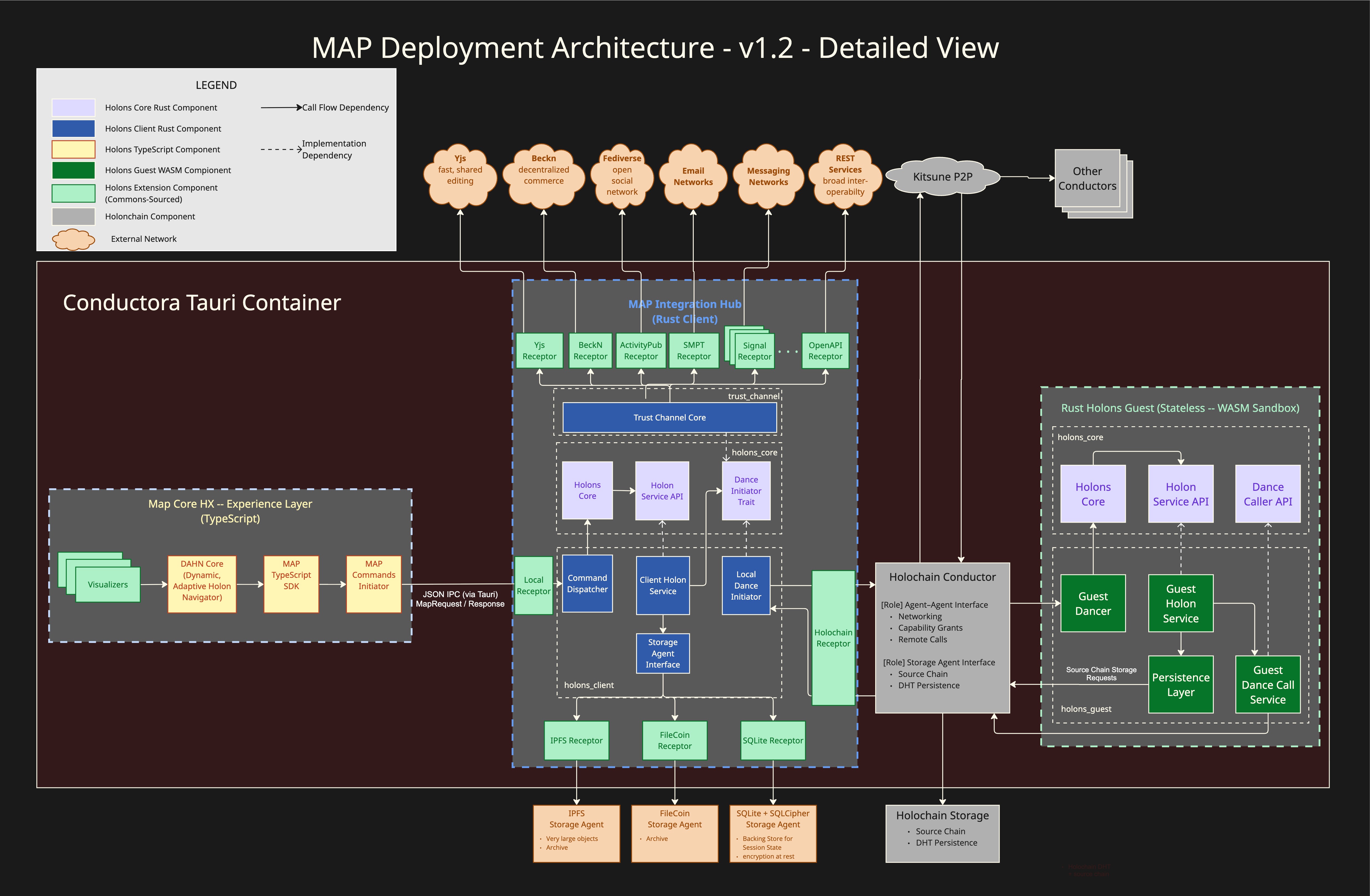

This specification defines the MAP Command architecture within the Conductora Tauri container, as shown in the MAP Deployment Architecture.

MAP Deployment Archi - v1.2 -- Detailed View.jpg

MAP Commands form the structural IPC contract between the TypeScript Experience Layer and the Rust Integration Hub.

They exist exclusively within the Conductora container.

2.1 IPC Entry Point¶

All MAP Commands enter the system through a single Tauri IPC function:

dispatch_map_command

Call flow begins:

TypeScript
  → Tauri invoke("dispatch_map_command")
    → dispatch_map_command
    → Runtime::dispatch

The Tauri entrypoint is transport-only.

It:

Accepts wire types
Delegates immediately to Runtime
Performs no binding
Performs no lifecycle enforcement
Performs no descriptor evaluation

All execution authority begins inside Runtime.

2.2 Runtime Boundary¶

Runtime::dispatch is the single structural execution boundary for MAP Commands.

It is responsible for:

Binding wire types to domain types
Resolving transaction context
Enforcing descriptor policy
Delegating scope-specific execution
Converting domain results back to wire form

No command may bypass Runtime.

2.3 The Sandwich Model (Wire vs Domain)¶

MAP Commands strictly separate transport types ("bread") from behavioral domain types ("filling").

Bread (Wire Types)¶

Wire types exist only:

In the Tauri entrypoint
Inside Runtime::dispatch during binding
When constructing the response

Examples:

MapIpcRequest
MapIpcResponse
MapCommandWire
HolonReferenceWire
HolonError

Wire types:

Are serializable
Contain identifiers
Contain no behavioral objects
Must not cross into domain execution

Filling (Domain Types)¶

Domain types exist only below the binding seam.

Examples:

MapCommand
SpaceCommand
TransactionCommand
HolonCommand
HolonReference
TransactionContextHandle
HolonError

Domain types:

Contain behavior
Contain transaction-bound references
Must not depend on serialization
Must not reference any *Wire types

Binding occurs exclusively inside Runtime::dispatch.

After binding completes, no *Wire types remain.

2.4 Host / Guest Demarcation¶

MAP Commands are a host-side construct.

They execute entirely within the Integration Hub (Rust client layer).

They do not:

Execute inside the Holochain Conductor
Execute inside the Rust Holons Guest (WASM)
Cross into other conductors as command structures

The guest exposes domain capabilities.
The host interprets and dispatches commands.

This separation is fundamental to the sandwich model.

3. Normative IPC Dispatch Definition¶

The following function is the single normative IPC ingress into MAP domain execution:

#[tauri::command]
async fn dispatch_map_command(
    state: State<'_, Runtime>,
    request: MapIpcRequest,
) -> Result<MapIpcResponse, HolonError> {
    state.dispatch(request).await
}

Normative requirements:

This MUST be the only IPC command that initiates MAP domain execution.
It MUST accept only wire-layer types.
It MUST delegate immediately to Runtime::dispatch.
It MUST perform no scope inference.
It MUST perform no lifecycle enforcement.
It MUST perform no descriptor evaluation.
It MUST not construct domain objects directly.

All execution authority begins inside Runtime::dispatch.

4. IPC Envelope (Wire Layer)¶

4.1 MapIpcRequest¶

pub struct MapIpcRequest {
    pub request_id: RequestId,
    pub command: MapCommandWire,
}

4.2 MapIpcResponse¶

pub struct MapIpcResponse {
    pub request_id: RequestId,
    pub result: Result<MapResultWire, HolonError>,
}

Wire types:

Are serializable
Contain identifiers only
Contain no behavioral objects
Must not cross below the binding seam

5. Domain Command Surface (Post-Binding)¶

Command identity is determined exclusively by the structural variant of MapCommandWire.

MAP Commands do not use string-based command routing. Scope and command identity must be derived solely from the structural command variant. These types exist only below the binding seam.

5.1 MapCommand¶

pub enum MapCommand {
    Space(SpaceCommand),
    Transaction(TransactionCommand),
    Holon(HolonCommand),
}

Scope is explicit and structural.

5.2 SpaceCommand¶

pub enum SpaceCommand {
    BeginTransaction,
}

5.3 TransactionCommand¶

pub struct TransactionCommand {
    pub context: TransactionContextHandle,
    pub action: TransactionAction,
}

No tx_id strings exist below binding.

5.3.1 TransactionAction¶

pub enum TransactionAction {
    Commit,
    NewHolon { key: Option<MapString> },
    StageNewHolon { source: TransientReference },
    StageNewFromClone {
        original: HolonReference,
        new_key: MapString,
    },
    StageNewVersion { current_version: SmartReference },
    StageNewVersionFromId { holon_id: HolonId },
    DeleteHolon { local_id: LocalId },
    LoadHolons { bundle: HolonReference },
    Dance(DanceRequest),
    Lookup(LookupAction),
    Query(QueryExpression),
}

TransactionAction defines the complete transaction-scoped command surface exposed by the MAP Commands API in v0.

Discrete actions:

Commit Finalizes the active transaction.
NewHolon { key } Creates a new transient holon, optionally with a base key.
StageNewHolon { source } Stages a new holon from a transient source reference.
StageNewFromClone { original, new_key } Stages a new holon cloned from an existing holon reference with a new key.
StageNewVersion { current_version } Stages a new version from an existing smart reference.
StageNewVersionFromId { holon_id } Stages a new version from an existing holon id.
DeleteHolon { local_id } Deletes the holon identified by the given local id within the active transaction.
LoadHolons { bundle } Loads holons from an existing holon reference bundle into the active transaction.
Dance(DanceRequest) Executes a DANCE request within the active transaction context.
Lookup(LookupAction) Executes a transaction-scoped lookup action.
Query(QueryExpression) Executes a query expression against transaction-visible state.

5.3.1.1 LookupAction¶

pub enum LookupAction {
    GetAllHolons,
    GetStagedHolonByBaseKey { key: MapString },
    GetStagedHolonsByBaseKey { key: MapString },
    GetStagedHolonByVersionedKey { key: MapString },
    GetTransientHolonByBaseKey { key: MapString },
    GetTransientHolonByVersionedKey { key: MapString },
    StagedCount,
    TransientCount,
}

LookupAction is the definitive list of transaction-scoped lookup actions.

Discrete actions:

GetAllHolons Returns all holons visible in the active transaction.
GetStagedHolonByBaseKey { key } Returns the staged holon matching the given base key.
GetStagedHolonsByBaseKey { key } Returns all staged holons matching the given base key.
GetStagedHolonByVersionedKey { key } Returns the staged holon matching the given versioned key.
GetTransientHolonByBaseKey { key } Returns the transient holon matching the given base key.
GetTransientHolonByVersionedKey { key } Returns the transient holon matching the given versioned key.
StagedCount Returns the number of staged holons in the active transaction.
TransientCount Returns the number of transient holons in the active transaction.

5.4 HolonCommand¶

pub struct HolonCommand {
    pub target: HolonReference,
    pub action: HolonAction,
}

pub enum HolonAction {
    Read(ReadableHolonAction),
    Write(WritableHolonAction),
}

Dispatch stops at HolonReference.

5.4.1 HolonAction¶

pub enum HolonAction {
    Read(ReadableHolonAction),
    Write(WritableHolonAction),
}

HolonAction defines the complete holon-targeted command surface exposed by the MAP Commands API in v0.

Discrete actions:

Read(ReadableHolonAction) Executes a non-mutating action against a bound holon reference.
Write(WritableHolonAction) Executes a mutating action against a bound holon reference.

5.4.1.1 ReadableHolonAction¶

pub enum ReadableHolonAction {
    CloneHolon,
    EssentialContent,
    Summarize,
    HolonId,
    Predecessor,
    Key,
    VersionedKey,
    PropertyValue { name: PropertyName },
    RelatedHolons { name: RelationshipName },
}

ReadableHolonAction is the definitive list of read-only holon actions exposed through the MAP Commands API.

Discrete actions:

CloneHolon Clones the target holon and returns a transient reference.
EssentialContent Returns the essential content of the target holon.
Summarize Returns a summary string for the target holon.
HolonId Returns the holon id of the target holon.
Predecessor Returns the predecessor reference of the target holon, if any.
Key Returns the base key of the target holon, if any.
VersionedKey Returns the versioned key of the target holon.
PropertyValue { name } Returns the value of the named property on the target holon.
RelatedHolons { name } Returns the holons related to the target holon by the named relationship.

The following ReadableHolon trait methods are explicitly not part of the MAP Commands API surface in v0:

is_accessible
get_all_related_holons
into_model

These may remain available as internal/runtime APIs without becoming command-level actions.

5.4.1.2 WritableHolonAction¶

pub enum WritableHolonAction {
    WithPropertyValue { name: PropertyName, value: BaseValue },
    RemovePropertyValue { name: PropertyName },
    AddRelatedHolons { name: RelationshipName, holons: Vec<HolonReference> },
    RemoveRelatedHolons { name: RelationshipName, holons: Vec<HolonReference> },
    WithDescriptor { descriptor: HolonReference },
    WithPredecessor { predecessor: Option<HolonReference> },
}

WritableHolonAction is the definitive list of mutating holon actions exposed through the MAP Commands API.

Discrete actions:

WithPropertyValue { name, value } Sets or replaces a property value on the target holon.
RemovePropertyValue { name } Removes a property value from the target holon.
AddRelatedHolons { name, holons } Adds one or more related holon references under the named relationship.
RemoveRelatedHolons { name, holons } Removes one or more related holon references from the named relationship.
WithDescriptor { descriptor } Sets the descriptor reference of the target holon.
WithPredecessor { predecessor } Sets or clears the predecessor reference of the target holon.

6. Runtime Structure and Dispatch¶

pub struct Runtime {
    active_space: Arc<HolonSpaceManager>,
}

Responsibilities:

Bind Wire -> Domain
Resolve transaction context
Enforce descriptor policy
Delegate execution
Convert domain result -> Wire

6.1 Runtime Boundary Signature¶

impl Runtime {
    async fn dispatch(
        &self,
        request: MapIpcRequest,
    ) -> Result<MapIpcResponse, HolonError>;
}

Runtime::dispatch is the full sandwich boundary (ingress bread + filling delegation + egress bread).

6.2 Domain Dispatch¶

impl Runtime {
    fn dispatch_command(
        &self,
        command: MapCommand,
    ) -> Result<MapResult, HolonError> {
        match command {
            MapCommand::Space(cmd) => self.dispatch_space(cmd),
            MapCommand::Transaction(cmd) => self.dispatch_transaction(cmd),
            MapCommand::Holon(cmd) => self.dispatch_holon(cmd),
        }
    }
}

No *Wire types appear below binding.

Scope branching is structural routing only.
Lifecycle and policy decisions are derived from descriptors.

7. Scope Execution Sequences¶

7.1 Space Scope¶

MapIpcRequest(Space)
  → bind
  → dispatch_space
  → open_transaction
  → MapIpcResponse

7.2 Transaction Scope¶

MapIpcRequest(Transaction)
  → bind (tx_id → TransactionContextHandle)
  → dispatch_transaction
  → TransactionContext
  → MapIpcResponse

7.3 Holon Scope¶

MapIpcRequest(Holon)
  → bind (HolonReferenceWire → HolonReference)
  → dispatch_holon
  → HolonReference.method()
  → MapIpcResponse

8. Descriptor Enforcement Model¶

pub struct CommandDescriptor {
    pub is_mutating: bool,
    pub requires_open_tx: bool,
    pub requires_commit_guard: bool,
    pub snapshot_after: bool,
}

Runtime MUST:

Resolve descriptor
Validate lifecycle
Enforce commit guard if required
Trigger snapshot if required

Policy derives from descriptor metadata, not command enum branching.

9. Error Model¶

Domain error: HolonError

Error conversion occurs only at IPC seams using existing (default) Serialize and Deserialize.

10. Non-Goals¶

This specification does not:

Introduce multi-space routing
Define cross-space execution
Redesign TrustChannel authority
Replace transaction lifecycle semantics
Implement undo/redo
Define query optimization

11. Forward Evolution¶

Future extensions must preserve:

Single IPC entrypoint
Strict wire/domain separation
Explicit structural scope
Descriptor-driven policy
Runtime as the sole execution boundary
No wire leakage below binding seam
